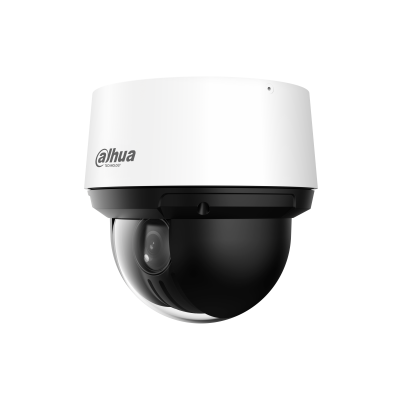

Device Type: 2MP 16x WizSense Network PTZ Camera (Outdoor Mini PTZ Dome)
Model / SKU: DH-SD4A216DB-HNY (also listed as SD4A216DB-HNY)
Brand: Dahua
Series: WizSense Series / SD4 Series
Image Sensor: 1/2.8" 2-Megapixel STARVIS™ CMOS
Max. Resolution: 1920 × 1080 (1080p) @ 25/30 fps
Min. Illumination: Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR on)
Lens: Motorized Varifocal, 5 mm – 80 mm; Max. Aperture F1.6–F3.5; Optical Zoom: 16×
Field of View: H: 53.9°–4.6° / V: 30.3°–2.6° / D: 60°–5.3°
Focus Control: Auto / Semi-auto / Manual
Iris Control: Fixed Iris Control Type: P-Iris
DORI Distance: Detect 1,103.4 m / Observe 435.9 m / Recognize 220.7 m / Identify 110.3 m
Illumination: 6 × IR LEDs; Max. IR Distance up to 100 m; On/Off Control: Zoom Prio, Manual, Auto, Off
PTZ Functionality:- Pan/Tilt Range: Pan 0°–360° endless / Tilt –5°–+90°, auto flip 180°
- Manual Control Speed: Pan 0.1°/s–240°/s / Tilt 0.1°/s–160°/s
- Preset Speed: Pan 240°/s; Tilt 160°/s
- Presets: 300
- Tour: 8 (up to 32 presets per tour)
- Pattern: 5
- Scan: 5
- Power-off Memory: Yes
- Idle Motion: Pattern; Preset; Scan; Tour
Video Output: Network Streaming Only (No Analog Video Output)
Video Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264H / H.264B / MJPEG (Sub Stream)
Streaming Capability: 3 Streams
Frame Rate: Main Stream: 1080p/1.3M/720p @ 1–25/30 fps; Sub Stream 1 & 2: D1/VGA/CIF/1080p/1.3M/720p @ 1–25/30 fps
Bit Rate Control: CBR / VBR
WDR: 120 dB
Noise Reduction: 2D NR / 3D NR
Image Enhancements: BLC, HLC, RoI, EIS (Electronic Image Stabilization), Defog (Electronic), Digital Zoom 16×, Image Rotation 180°, Privacy Masking (up to 24 areas), S/N Ratio ≥ 55 dB
Data Ports: 1 × RJ-45 (10/100 Base-T Ethernet)
Network Protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, SMB, HTTP, SSL, DHCP, SMTP, SNMPv1/v2c/v3, QoS, RTSP, ARP
Interoperability: CGI, SDK, ONVIF (Profile S, G, T, M), P2P
User/Host: 20 (Total Bandwidth: 64 M)
Storage: Micro SD Card (Max. 512 GB, Card Not Included); FTP/SFTP; NAS
Audio: 1 Channel Audio Input (LINE IN, bare wire); 1 Channel Audio Output (LINE OUT, bare wire); Audio Compression: G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, PCM
Alarm: 2 Channels Alarm Input (Wet Contact: Max Load 5 mA 3–5 VDC; Supports Dry Contact); 1 Channel Alarm Output (Dry Contact, Max Load 1,000 mA 30 VDC / 500 mA 50 VAC)
Smart Features (WizSense):- IVS (Perimeter Protection): Tripwire, Intrusion, Crossing Fence Detection, Loitering Detection, Abandoned/Missing Object, Fast Moving, Parking Detection, People Gathering, Vehicle/Human Alarm Classification, Linkage Tracking
- Face Detection: Supports Face Detection, Face Track Box, Capturing Pictures, Face Enhancement; Supports Face Cutout (Face, One-inch Photo); Capturing Strategies Include Real-time Capturing and Quality First
- Smart Tracking: Auto Tracking 1.0
- SMD: SMD 3.0
- Auto Patrol: Triggers IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets
Power Supply: 12V DC (±10%), 2A (Adapter Included); PoE+ (802.3at)
Power Consumption: Basic: 10 W; Max (Illuminator On + Fan On + PTZ): 19 W
Operating Conditions: –40°C to +65°C (–40°F to +149°F); Humidity ≤ 95% RH
Protection: IP66 Weatherproof; TVS 6000V Lightning Proof, Surge Protection, Voltage Transient Protection
Casing Material: Not Specified in Available Sources
Dimensions: 170.4 mm × Φ171.1 mm (6.71" × Φ6.74")
Net Weight: 2.5 kg (5.51 lb)
Gross Weight: 3.2 kg (7.05 lb)
Certifications: CE (EN55032/EN55024/EN50130-4); FCC (Part 15 Subpart B, ANSI C63.4-2014); UL (UL62368-1)
Optional Accessories: Smoked Dome Cover & In-Ceiling Mount for Enhanced Concealment
Key Specs: Dahua DH-SD4A216DB-HNY 2MP 16x WizSense PTZ Camera, 1/2.8" 2MP STARVIS CMOS, 1920×1080 @ 25/30fps, 5–80mm Motorized Lens (F1.6–F3.5, 16x Optical Zoom), Pan 360° Endless / Tilt –5°–+90°, 100m Smart IR, 120dB WDR, 2D/3D NR, Smart H.265+/H.264+, Triple-Stream, IVS (Tripwire/Intrusion/Loitering/Parking/People Gathering), Face Detection, Auto Tracking 1.0, SMD 3.0, 300 Presets, 8 Tours, 5 Patterns, 5 Scans, MicroSD up to 512GB, Audio In/Out, 2/1 Alarm In/Out, 12V DC / PoE+ (802.3at), IP66, TVS 6000V Lightning Protection, 2.5kg
Usage: Outdoor Perimeter Protection, Large Area Surveillance (Parking Lots, Campuses, Industrial Sites), Face Detection & People Counting, Vehicle & Human Classification, Auto Tracking Applications, and Mission-Critical PTZ Monitoring
