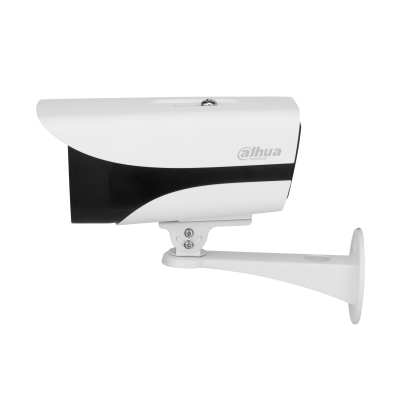

Device Type: 2MP Lite Series Full-Color Fixed-Focal Bullet Network Camera
Model / SKU: DH-IPC-HFW2239MP-AS-LED-B-S2 (official base model: IPC-HFW2239M-AS-LED-B-S2; lens variants: -0360B for 3.6mm, -0600B for 6mm)
Brand: Dahua
Series: Lite Series
Form Factor: Bullet
Image Sensor: 1/2.8" 2-Megapixel Progressive Scan CMOS
Max. Resolution: 1920 × 1080 (2MP / 1080p) @ 25/30 fps
Min. Illumination: 0.0017 Lux @ F1.0 (Color)
S/N Ratio: >56 dB
Electronic Shutter: Auto/Manual, 1/3 s–1/100,000 s
Lens: Fixed-Focal, 3.6 mm (Standard) / 6 mm (Optional); Max. Aperture F1.0; M12 Mount
Field of View (3.6 mm): Horizontal 91° / Vertical 47° / Diagonal 109°
Field of View (6 mm): Horizontal 55° / Vertical 30° / Diagonal 64°
Close Focus Distance: 3.6 mm: 1.3 m; 6 mm: 3.4 m
DORI Distance (3.6 mm): Detect 49.7 m / Observe 19.9 m / Recognize 9.9 m / Identify 5.0 m
Illumination: Built-in Warm Light LEDs (2 LEDs); Max. Illumination Distance 40 m; Auto/Manual Control
Video Output: Network Streaming Only (No Analog Video Output)
Video Compression: H.265; H.264; H.264B; MJPEG (Sub Stream Only)
Smart Codec: Smart H.265+ / Smart H.264+
Frame Rate: Main Stream: 1920 × 1080 @ 1–25/30 fps; Sub Stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
Stream Capability: 2 Streams
WDR: 120 dB
Noise Reduction: 3D NR
Image Enhancements: ROI (4 Areas), Rotation Mode (0°/90°/180°/270°), Mirror, Privacy Masking (4 Areas), HLC, BLC, Digital Watermarking
Data Ports: 1 × RJ-45 (10/100 Base-T Ethernet)
Network Protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec
Storage: Micro SD Card (Max. 256 GB, Card Not Included), Dahua Cloud, FTP, SFTP, NAS
Audio: 1/1 Audio In/Out (RCA Port); Audio Compression: G.711A, G.711Mu, G.726
Alarm: 2/2 Alarm In/Out (2 Inputs: 5mA 3V–5V DC; 2 Outputs: 300mA 12V DC)
Smart Features (Intelligent Monitoring):- IVS: Tripwire, Intrusion
- Abnormality Detection: Motion Detection (4 Areas, Rectangular), Video Tampering, No SD Card, SD Card Full/Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection, Audio Detection, Safety Exception
Power Supply: 12V DC / PoE (802.3af); 12V DC Power Output (Max. Current 165 mA)
Power Consumption: < 10W
Operating Conditions: –40°C to +60°C (–40°F to +140°F); Humidity ≤ 95% RH
Protection: IP67 Weatherproof; Wide Voltage (±30% Input Voltage Tolerance)
Casing Material: Metal + Plastic
Dimensions: 194.1 mm × 96.4 mm × 89.5 mm (L × W × H)
Net Weight: 0.725 kg (1.6 lb)
Certifications: CE-LVD (EN62368-1); CE-EMC (2014/30/EU); FCC (47 CFR Part 15, Subpart B)
Key Specs: Dahua DH-IPC-HFW2239MP-AS-LED-B-S2 2MP Lite Series Full-Color Bullet Camera, 1/2.8" 2MP CMOS, 1920×1080 @ 25/30fps, 3.6mm/6mm Fixed Lens (F1.0), 40m Warm Light Illumination, 120dB WDR, 3D NR, H.265/Smart H.265+, Dual-Stream, ROI (4 Areas), IVS (Tripwire/Intrusion), 2/2 Alarm In/Out, 1/1 Audio In/Out, MicroSD up to 256GB, PoE (802.3af) / 12V DC, IP67 Weatherproof, Metal + Plastic Housing, ONVIF
Usage: Outdoor & Indoor Surveillance, Residential Security, Small to Medium Business Monitoring, Retail Stores, Parking Lots, Driveways, and Any Installation Requiring Full-Color Night Vision with Intelligent Detection and Alarm/Audio Connectivity
