KSh 3,430(KSh 3,979 Incl VAT)

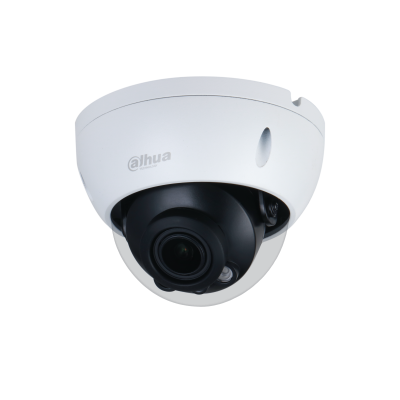

Device Type: 2MP Lite Series IR Fixed-Focal Dome Network Camera
Model / SKU: DH-IPC-HDBW2230EN-S-S2 (also listed as IPC-HDBW2230E-S-S2)
Brand: Dahua
Series: Lite Series
Image Sensor: 1/2.7" 2-Megapixel Progressive Scan CMOS
Max. Resolution: 1920 × 1080 (2MP, 1080p) @ 25/30 fps
Min. Illumination: 0.005 Lux @ F1.6 (Color, 30 IRE); 0.0005 Lux @ F1.6 (B/W, 30 IRE); 0 Lux with IR On
S/N Ratio: >56 dB
Lens: Fixed-Focal, 2.8 mm / 3.6 mm (M12 Mount); Max. Aperture F1.6
Field of View (2.8 mm): Horizontal 108° / Vertical 56° / Diagonal 128°
Field of View (3.6 mm): Horizontal 88° / Vertical 44° / Diagonal 105°
Close Focus Distance: 0.6 m (2.8 mm) / 1.3 m (3.6 mm)
Illumination: Built-in IR LED (3 IR LEDs); Max. IR Distance up to 30 m; Auto/Manual Control
Pan/Tilt/Rotation: Pan 0°–355° / Tilt 0°–65° / Rotation 0°–355° (3-Axis Adjustment)
Video Output: Network Streaming Only (No Analog Video Output)
Video Compression: H.265, H.264, H.264B, MJPEG (Sub Stream Only)
Smart Codec: Smart H.265+ / Smart H.264+
Frame Rate: Main Stream: 1920 × 1080 @ 1–25/30 fps; Sub Stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
Stream Capability: 2 Streams
Bit Rate Control: CBR / VBR
WDR: DWDR (Digital WDR)
Noise Reduction: 3D NR
Image Enhancements: BLC, HLC, ROI (4 Areas), Privacy Masking (4 Areas), Image Rotation (0°/90°/180°/270°), Mirror, Digital Watermarking
Data Ports: 1 × RJ-45 (10/100 Base-T Ethernet)
Network Protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone
Max. Users: 20 (Total Bandwidth: 48 M)
Storage: Micro SD Card (Max. 256 GB, Card Not Included), FTP, SFTP, NAS
Audio: No Built-in Microphone or Speaker
Alarm: No Alarm I/O
Smart Features: IVS (Tripwire, Intrusion); Abnormality Detection (Motion Detection, Video Tampering, No SD Card, SD Card Full/Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection)
Power Supply: 12V DC / PoE (802.3af)
Power Consumption: Basic: 1.8 W (12V DC) / 2.5 W (PoE); Max.: 4.6 W (12V DC) / 5.4 W (PoE)
Operating Conditions: -40°C to +60°C (-40°F to +140°F); Humidity ≤95% RH
Protection: IP67 Weatherproof; IK10 Vandal-Proof
Casing Material: Metal
Dimensions: 81 mm × Φ109.9 mm (3.2" × Φ4.3")
Net Weight: 0.35 kg (0.8 lb)
Certifications: CE-LVD (EN 62368-1); CE-EMC (2014/30/EU); FCC (47 CFR Part 15, Subpart B)
Key Specs: Dahua DH-IPC-HDBW2230EN-S-S2 2MP Lite Series IR Dome Camera, 1/2.7" 2MP CMOS, 1920×1080 @ 25/30fps, 2.8mm/3.6mm Fixed Lens (F1.6), 30m Smart IR, H.265/Smart H.265+, DWDR, 3D NR, ROI (4 Areas), IVS (Tripwire/Intrusion), MicroSD up to 256GB, PoE (802.3af) / 12V DC, IP67 Weatherproof, IK10 Vandal-Proof, Metal Housing, ONVIF (Profile S/G/T), 3-Axis Adjustment
Usage: Outdoor & Indoor Surveillance, Residential Security, Small to Medium Business Monitoring, Retail Stores, Parking Lots, Driveways, and Any Installation Requiring a Vandal-Resistant, Weatherproof Dome Camera
