KSh 5,720(KSh 6,635 Incl VAT)

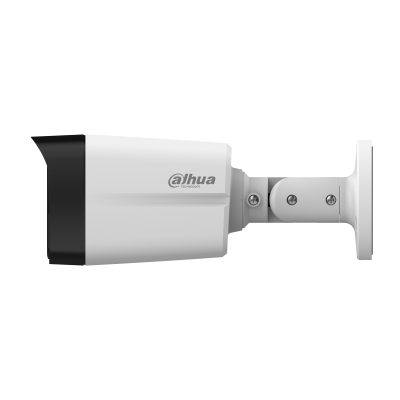

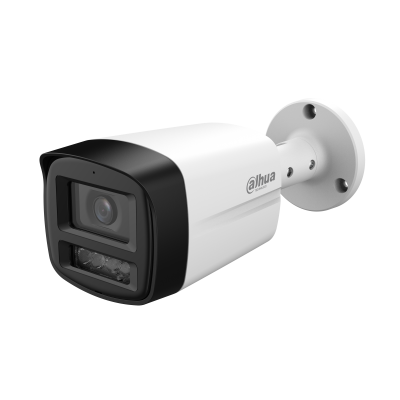

Device Type: 5MP Full-Color HDCVI Fixed-Focal Bullet Camera (Lite Plus Series)
Model / SKU: DH-HAC-HFW1509TLMP-A-LED (also listed as HAC-HFW1509TLMP-A-LED)
Brand: Dahua
Image Sensor: 1/2.7" 5-Megapixel CMOS (Full-color Starlight)
Max. Resolution: 2880 × 1620 (5MP, 16:9)
Min. Illumination: 0.001 Lux @ F1.0 (Color Mode); 0 Lux with Warm Light On
S/N Ratio: >65 dB
Lens: Fixed-Focal, 3.6 mm (Standard) / 2.8 mm (Optional); Max. Aperture F1.0; M12 Mount
Field of View (3.6 mm): Horizontal 88° / Vertical 46° / Diagonal 104°
Field of View (2.8 mm): Horizontal 112° / Vertical 57° / Diagonal 132°
Close Focus Distance: 2.3 m (3.6 mm) / 1.6 m (2.8 mm)
Illumination: Built-in Warm Light LED (2 LEDs); Max. Illumination Distance up to 40 m; Auto/Manual Control
Pan/Tilt/Rotation: Pan 0°–360° / Tilt 0°–90° / Rotation 0°–360°
Video Output: Switchable HDCVI / TVI / AHD / CVBS over a single BNC port. Important: This is an HDCVI analog camera — it transmits video over coaxial cable and does not have an RJ45 Ethernet port or PoE support.
Video Resolution Modes: 5M (2880×1620), 4M (2560×1440), 1080p (1920×1080), 960H (960×576)
Frame Rate: 25 fps @ 5MP, 4M, 1080p (HDCVI); 25/30 fps @ 4M (AHD/TVI); 25/30 fps @ 960H (CVBS)
Image Enhancement: 120 dB True WDR, 3D NR, BLC, HLC, HLC-Pro, Smart Light, Mirror, Privacy Masking (8 Zones)
Audio: Built-in Microphone (Model "-A" suffix denotes audio); Audio is transmitted over coaxial cable alongside video.
Data Ports: No network ports. Video, audio, and power are transmitted over a single coaxial cable (HDCVI technology).
Power Supply: 12V DC ±30%
Power Consumption: Max 5.0W (12V DC, white light on)
Protection: IP67 Weatherproof (Dust-Proof, Withstands 1m Water Submersion for 30 Minutes)
Casing Material: Metal Front Cover + Plastic Main Body + Metal Bracket
Dimensions: 198.4 mm × 80.2 mm × 76.2 mm
Net Weight: Approx. 0.29 kg
Operating Conditions: -40°C to +60°C (-40°F to +140°F); Humidity <95% RH (Non-Condensing)
Certifications: CE (EN55032, EN55024, EN50130-4, EN60950-1); FCC (CFR 47 Part 15 Subpart B); UL (UL60950-1)
Key Features: Full-Color 24/7 Imaging (Warm Light LED Enables Color Video in Total Darkness); 120 dB True WDR for High-Contrast Scenes; 3D NR for Effective Noise Reduction; Super Adapt Intelligent Algorithm for Auto Parameter Adjustment; Broadcast-Quality Audio via Coaxial Cable; 4 Signals (Video, Audio, Data, Power) Over 1 Coaxial Cable; HDCVI/TVI/AHD/CVBS Switchable Output; IP67 Weatherproof; Compact Bullet Design for Wall or Ceiling Mounting
Key Specs: Dahua DH-HAC-HFW1509TLMP-A-LED 5MP Full-Color HDCVI Bullet Camera, 1/2.7" 5MP CMOS, 2880×1620 @ 25fps, 3.6mm Fixed Lens (F1.0), 40m Warm Light Illumination, 120dB True WDR, 3D NR, Built-in Microphone, HDCVI/TVI/AHD/CVBS Switchable Output, 4-in-1 Signal over Coax, IP67, 12V DC, Metal + Plastic Housing, 198.4×80.2×76.2mm
Usage: Outdoor & Indoor Surveillance, Residential Security, Commercial & Retail Monitoring, Parking Lots, Driveways, Low-Light/24/7 Color Surveillance, and Any Installation Using Existing Coaxial Cable Infrastructure
