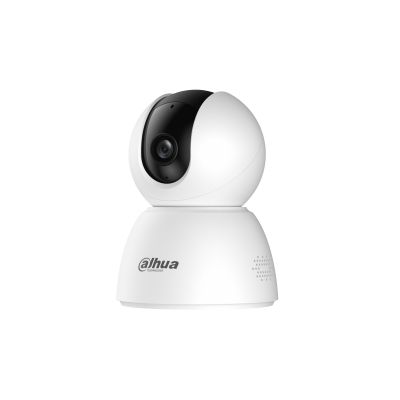

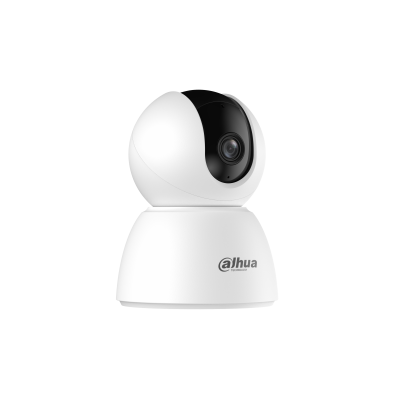

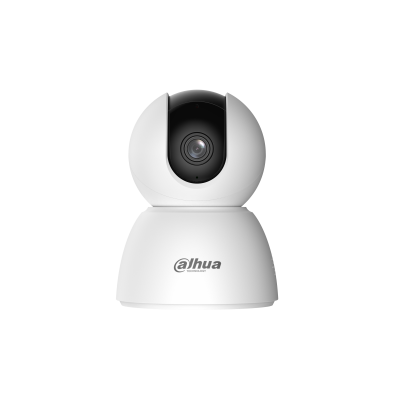

Device Type: 4MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera (Hero Series / Wireless Series)
Image Sensor: 1/2.8" 4-Megapixel CMOS
Max. Resolution: 2560 (H) × 1440 (V)
Min. Illumination: Color: 0.05 lux@F1.6; B/W: 0.005 lux@F1.6; 0 lux (IR on)
Lens: Fixed-Focal, 4 mm; Max. Aperture F1.6; Fixed Iris
Field of View: Horizontal 80.3° / Vertical 43.2° / Diagonal 94.3°
Close Focus Distance: 0.3 m
DORI Distance: Detect 80 m / Observe 31.6 m / Recognize 16 m / Identify 8 m
Illumination: Built-in IR LED (1 LED); Max. IR Distance 15 m; Auto/Manual/Off Control
PTZ Range: Pan 0°–325° / Tilt –20° to +100°; Manual Speed: Pan 57.7°/s, Tilt 46.2°/s; 300 Presets; Power-off Memory
Video Output: Network Streaming Only (No Analog Output)
Video Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264B / MJPEG
Frame Rate: Main Stream: 4M/1080p/1.3M/720p @ 1–25/30 fps; Sub Stream: D1/CIF @ 1–25/30 fps
Streaming: 2 Streams
WDR: DWDR (Digital Wide Dynamic Range)
Noise Reduction: 2D NR / 3D NR
Data Ports / Network:- Network Port: 1 × RJ-45 (10/100 Base-T)
- Wi-Fi: IEEE 802.11b/g/n, 2.412–2.472 GHz (2.4 GHz)
- Storage: Micro SD Card (Max. 512 GB, Card Not Included); FTP
- Management Software: DMSS Mobile Client (iOS / Android)
Audio: Built-in Microphone & Speaker; Two-Way Talk Supported; Audio Compression: PCM, G.711a, G.711u, G.726, MPEG2-Layer2, G.722.1
Smart Features:- AI Human Detection: Yes
- IVS: Tripwire, Intrusion
- Active Deterrence: Sound Warning Alarm (Customizable, 10s/20s/30s duration)
- Auto Tracking: Automatic Tracking of Targets
- Privacy Mode: One-click Privacy Mode
Power Supply: 5 VDC, 1 A ± 10% (Type-C)
Power Consumption: Basic 2 W; Max 5 W (illuminator + PTZ + speaker)
Physical:- Dimensions (W×D×H): 130.4 mm × Φ95.5 mm
- Net Weight: 0.25 kg (0.55 lb)
- Casing Material: Plastic
Environmental:- Operating Temperature: –10 °C to +40 °C (14 °F to +104 °F)
- Operating Humidity: ≤ 95%
Certifications: CE
Key Specs: Dahua DH-H4C 4MP Indoor Wi-Fi PT Camera, 1/2.8" 4MP CMOS, 2560×1440 @ 25/30fps, 4mm Fixed Lens (F1.6), Pan 325°/Tilt 100°, 15m IR Illumination, DWDR, 2D/3D NR, Smart H.265+/H.264+, Two-Way Talk, Built-in Mic & Speaker, AI Human Detection, Auto Tracking, IVS (Tripwire/Intrusion), Sound Warning Alarm, MicroSD up to 512GB, Wi-Fi 2.4GHz (IEEE 802.11b/g/n), RJ-45, 5V DC Type-C (≤5W), Plastic Housing, 130.4×Φ95.5mm, 0.25kg, –10°C to +40°C, DMSS App (iOS/Android)
Usage: Indoor Home & Shop Surveillance, Small Business Monitoring, Pet & Family Monitoring, Remote Live View & Two-Way Communication, 360° Room Coverage Without Blind Spots, and Any Indoor Installation Requiring a Compact Wi-Fi PT Camera with AI Human Detection and Auto Tracking
