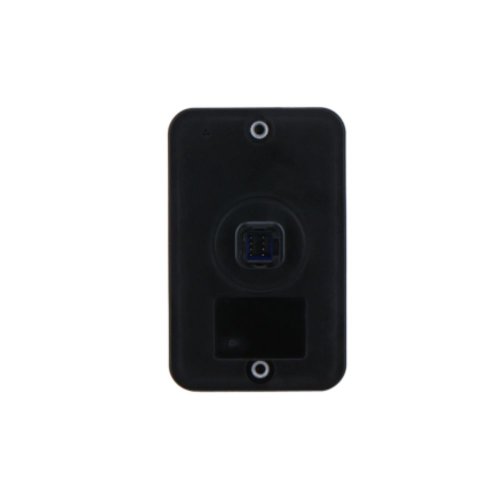

Device Type: 79 GHz Anti-Smashing Radar for Vehicle Barrier Gates
Brand/Model: Dahua ITSJC-2303-DC12
Video Output: N/A
Data Ports: 1x RS-485, 2x I/O (1 for update input, 1 for relay output)
Emission Frequency: 77 GHz – 81 GHz
Emission Power: ≤ 10 mW
Beam Width: Vertical: ±10°, Horizontal: ±36°
Detection Range: 0.3 m – 6 m (adjustable)
Anti-Smashing Region: 0 m – 2 m (adjustable)
Response Time: 50 ms
Detection Target: Human, Vehicle
Power Supply: 9 V – 12 V DC, < 0.25 A, < 3 W
Protection Grade: IP66
Operating Temperature: –40 °C to +85 °C
Dimensions: 96 mm × 60 mm × 16.4 mm
Weight: 70 g ± 10 g (Net)
Key Specs: Dahua ITSJC-2303-DC12, 79 GHz Anti-Smashing Radar, 77-81 GHz, ±10° Vertical Beam, 0.3-6m Detection, 0-2m Anti-Smash Zone, 50ms Response, RS-485, IP66, 9-12V DC
Usage: Barrier Gate Safety (Prevents arm from hitting vehicles/pedestrians), Smart Parking Systems, Vehicle Access Control, Outdoor Gate Installations
