DAHUA | MDT Kenya | MDTRETAIL

Home›Power solutions›Power Supply Units›Dahua›DAHUA DH-PFM344D-20CH-BS

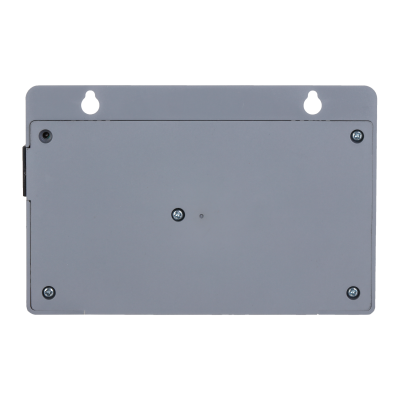

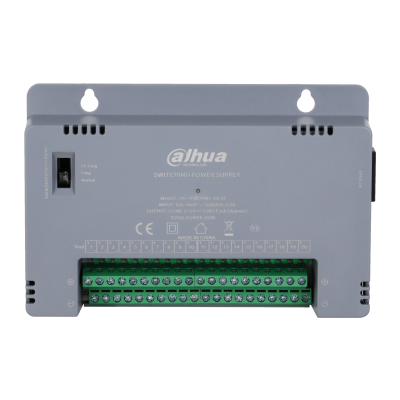

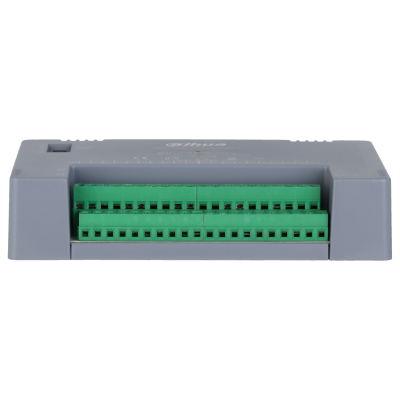

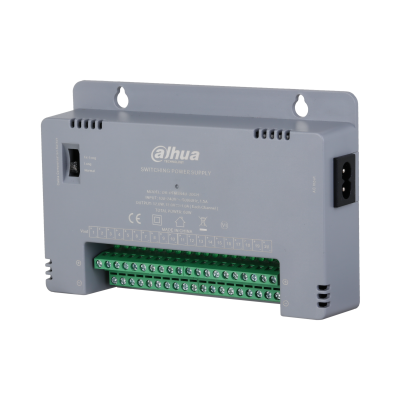

DAHUA DH-PFM344D-20CH-BS

1 / 5

DAHUA DH-PFM344D-20CH-BS

KSh 1,580(KSh 1,833 Incl VAT)

Datasheet
Device Type: 20-Channel Switching Power Supply (CCTV Distribution Box)
Brand: Dahua
Model: DH-PFM344D-20CH-BS
Input Voltage: 100–240 VAC, 50/60 Hz
Input Port: 2-pin female socket C8 (connected to UK standard cable)
Output Channels: 20 independent output terminals
Output Voltage (Adjustable): Normal: 12 VDC / Long: 13.5 VDC / Ex-Long: 15 VDC
Rated Output Current: Normal: 5 A / Long: 4.5 A / Ex-Long: 4 A
Total Rated Power: 60 W (approx. 12 W per channel)
Efficiency: ≥88%
Idle Power Consumption: ≤0.21 W
Protection Features: Overcurrent, Overvoltage, Short Circuit
Surge Protection: Common Mode: ±4 kV / Differential Mode: ±2 kV
Installation: Wall Mount
Dimensions (L x W x H): 158.0 × 104.0 × 34.0 mm
Net Weight: 0.31 kg
Operating Temperature: 0°C to +40°C
Certification: CE

1

SKU: DH-PFM344D-20CH-BSCategories: Power solutions, Power Supply Units, Dahua

Share:

Related Products

Line-interactive UPS DH-PFM350-360-A-600VA-360W

Line-interactive UPS DH-PFM350-360-A-600VA-360W

KSh 4,860

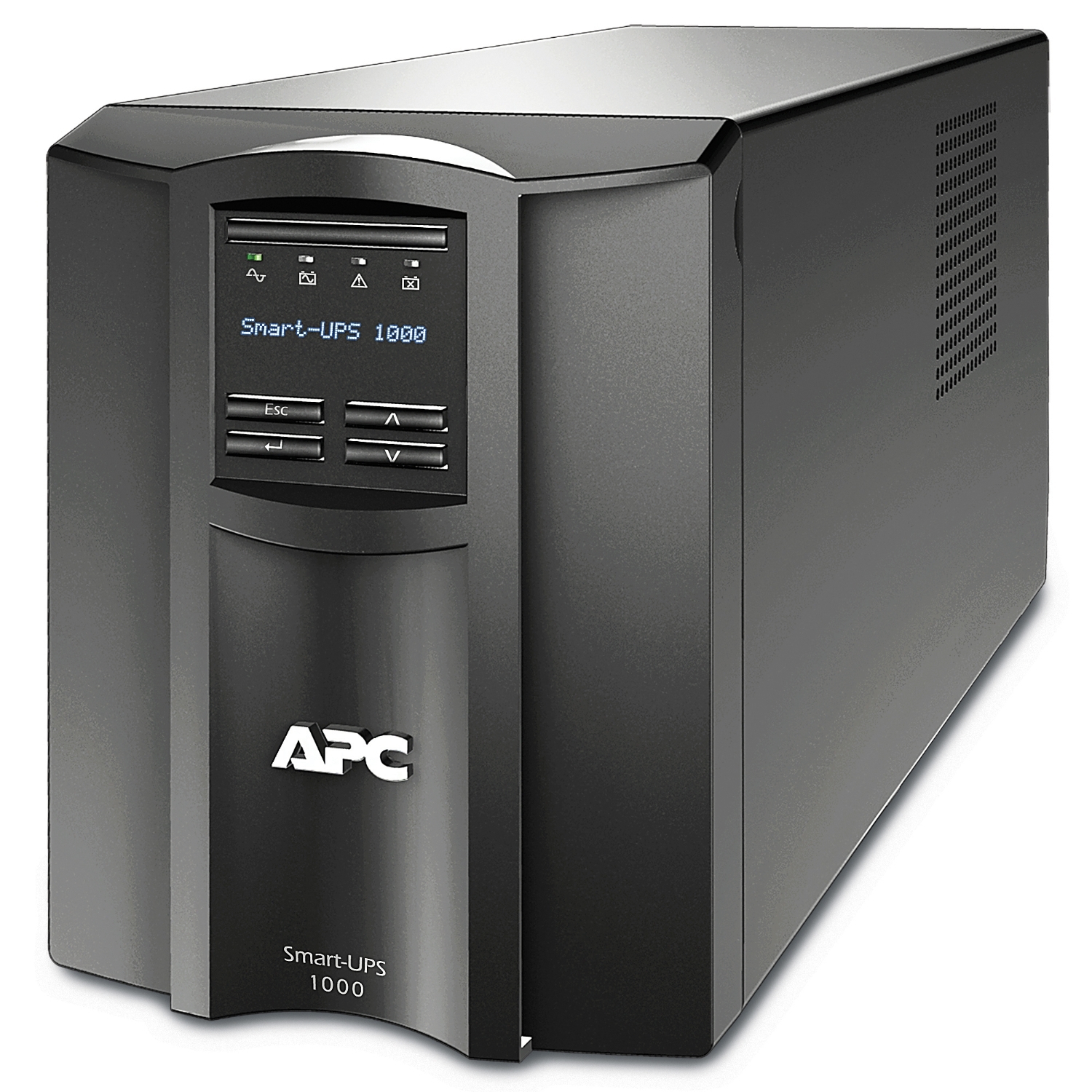

APC Desktop SMT1000IC SMART 1KVA Tower Lcd 230v

APC Desktop SMT1000IC SMART 1KVA Tower Lcd 230v

KSh 80,460

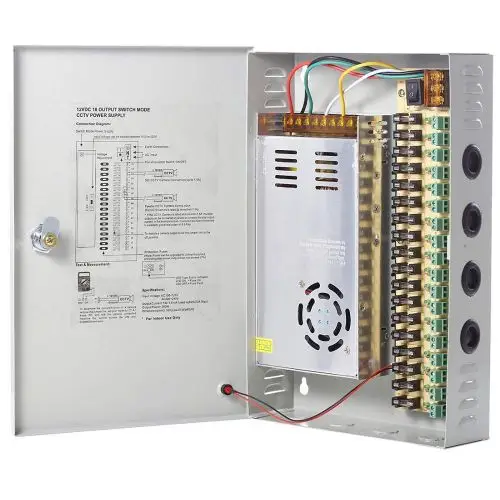

Switching Power Supply, CP-360-30A, 360W 12V 30A, 90–264V AC Input, Adjustable Output, Hiccup Protection
