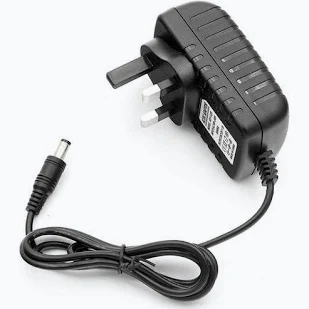

Device Type: AC-to-DC CCTV Power Adapter
Model Series: HT2000 (variants: HT2000-D, HT2000-H, HT2000-V, HT2000-W, HT2000-WP)
Video Output: N/A
Data Ports: Output: DC Barrel Jack (typically 5.5 × 2.1 mm; some variants use bare wire or customizable plugs)
Power Specifications:- Input Voltage: 90–264 V AC, 47–63 Hz (Universal)
- Output Voltage: DC 12V
- Rated Current: 2A (2000mA)
- Rated Power: 24W
- Efficiency: ≥85% @ rated voltage
- Ripple & Noise: ≤120 mVpk
Protection & Safety:- Overload: 120%–150% rated power (Hiccup mode, auto-recovery)
- Overvoltage: 120%–130% rated voltage
- Overcurrent: 120%–150% rated current
- Short Circuit: No damage, auto-recovery
- Safety Standards: CE (EN/IEC 62368-1)
Physical & Environmental (Varies by Variant):- DC Cable Length: 0.8 m (typical for -D/-V/-H variants)
- Operating Temperature: -10°C to +40°C
- Storage Temperature: -20°C to +85°C
- Plug Options: EU / US / UK standard plugs available
Key Specs: HT2000 Series CCTV Power Adapter, DC 12V 2A (24W), 90–264V AC Input, 5.5×2.1mm DC Jack, ≥85% Efficiency, Overload/Overvoltage/Overcurrent/Short-Circuit Protection, CE Compliant
Usage: Powering a Single Standard CCTV Camera (Analog/HDCVI/AHD/TVI/IP), LED Strip Lights, Routers, Modems, and Other 12V DC Devices Requiring ≤2A
