BS-PS12V15A-9CH | MDT Kenya | MDTRETAIL
Home
›
Power solutions
›
Power Supply Units
›
BS-PS12V15A-9CH
BS-PS12V15A-9CH
KSh 4,430
(KSh 5,139 Incl VAT)
Datasheet
Core Specifications
Input Voltage:
AC 100–240V worldwide compatibility (switchable 110V/220V)
Output Voltage:
DC 12V (adjustable range typically 12V–12.5V, some models ±10%)
Total Output Current:
15A maximum
Total Output Power:
180W
Number of Channels:
9 individual output ports for cameras
Output & Protection Features
Individually Fused Outputs:
Each channel has its own fuse (PTC auto-reset or glass fuse) to protect individual cameras
Per-Channel Current Limit:
Approximately 1.67A per port (though some listings note 10A max output, indicating a lower total capacity variant)
LED Status Indicators:
Per-channel LED lights show power/fuse status at a glance
Multiple Protections:
Overload, overvoltage, short circuit, and overcurrent protection with auto-recovery (hiccup mode)
Build & Installation
Metal Enclosure:
Durable, corrosion-resistant metal housing with a lockable design to prevent unauthorized access and insect/dust ingress
Wall-Mountable:
Compact design with mounting holes for easy wall installation
Efficiency:
Typically 80–85% conversion efficiency
Physical Specifications
Dimensions:
Varies by manufacturer — approximately 235 × 205 × 50 mm to 317 × 210 × 53 mm
Weight:
Approximately 1.4–1.8 kg
Working Temperature:
-10°C to +60°C (varies by model)
−
1
+
Add to cart
SKU: BS-PS12V15A-9CH
Categories:
Power solutions
,
Power Supply Units
Share:
Related Products
APC BACK - UPS 1200VA 230V, AVR, UNIVERSAL SOCKETS-BX1600MI-MS - 20115
KSh 16,190
Add to cart
Tycon TP-VRHP-4856 Voltage Converter
KSh 18,860
Add to cart

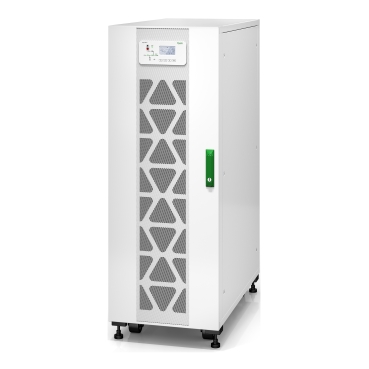

True online double conversion - NPS-AC40T33I
KSh 972,420
Add to cart
RG-PA600I-F Universal power module(AC, 600W) with redundancy function
KSh 53,110
Add to cart
Hybrid Mppt Solar Inverty, 48Vdc, 6Kw
KSh 48,860
Add to cart

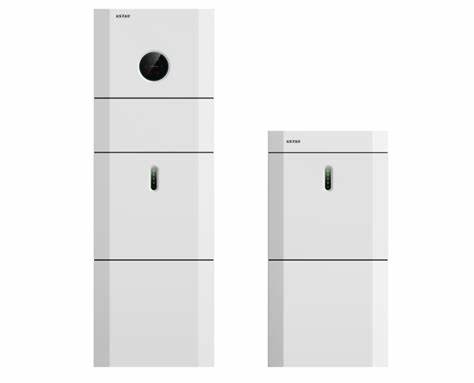

KSTAR S10KT 10kW, 3-phase, pure sine wave smart hybrid inverter. IP65 rating. LCD display. Mobile app integration. Strong build. Compact size. High design life.
KSh 320,730
Add to cart
EVI 10000VA / 9000W Tower Online Single Phase UPS
KSh 195,410
Add to cart

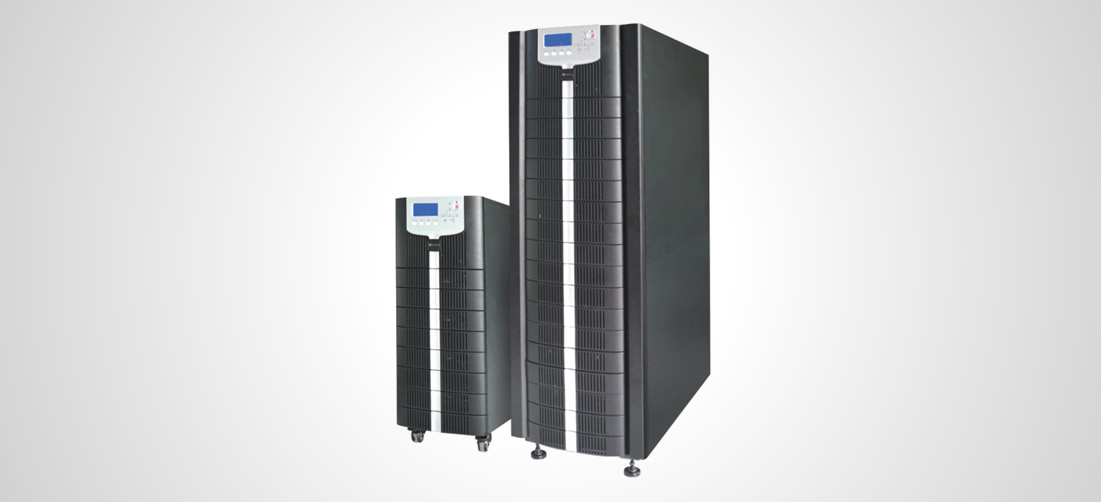

3 Phase, 30KVA/27KW, online double conversion UPS - T330Xi
