Device Type: Compact Desktop Workstation (2023 Model)
Part Number/SKU: MQH63B/A (Kenya/Middle East & Africa); Also available as MQH63LL/A (US), MQH63FN/A (EU), MQH63X/A (Global)
Brand: Apple
Processor: Apple M2 Ultra Chip — 24-core CPU (16 performance cores + 8 efficiency cores), 60-core GPU, 32-core Neural Engine
Memory: 64GB Unified RAM (Configurable to 128GB or 192GB)
Storage: 1TB SSD (Configurable to 2TB, 4TB, or 8TB)
Memory Bandwidth: 800GB/s
Media Engine: Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW; Two video decode engines, four video encode engines, four ProRes encode/decode engines
Video Output: Simultaneous support for up to eight displays — eight 4K@60Hz, six 6K@60Hz, or three 8K@60Hz over Thunderbolt; HDMI supports one display up to 8K@60Hz or 4K@240Hz with VRR, HDR, and multichannel audio

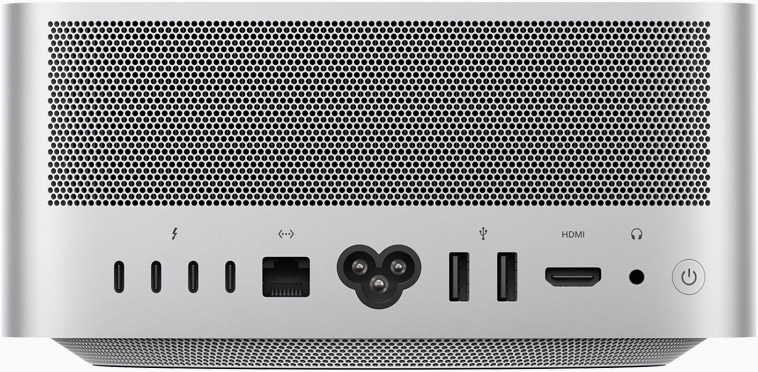

Data Ports:- Rear: 4 × Thunderbolt 4 (up to 40Gb/s, USB 4, DisplayPort), 2 × USB-A (up to 5Gb/s), 1 × HDMI, 1 × 10Gb Ethernet, 1 × 3.5mm Headphone Jack
- Front (M2 Ultra): 2 × Thunderbolt 4 (up to 40Gb/s), 1 × SDXC Card Slot (UHS-II)
Network: Wi-Fi 6E (802.11ax), Bluetooth 5.3, 10Gb Ethernet (Nbase-T: 1Gb/2.5Gb/5Gb/10Gb)
Audio: Built-in speaker; 3.5mm headphone jack with advanced support for high-impedance headphones
Power Consumption: Maximum continuous power 370W; Line voltage 100–240V AC, 50–60Hz
Dimensions (H × W × D): 9.5 × 19.7 × 19.7 cm (3.7 × 7.7 × 7.7 inches)
Weight: 3.6 kg (7.9 pounds)
Operating System: macOS (Ships with macOS Ventura or later)
Key Specs: Apple Mac Studio M2 Ultra, 24-Core CPU, 60-Core GPU, 32-Core Neural Engine, 64GB Unified Memory, 1TB SSD, 800GB/s Memory Bandwidth, 4× Thunderbolt 4 (Rear) + 2× Thunderbolt 4 (Front), 2× USB-A, HDMI (8K@60Hz / 4K@240Hz), 10Gb Ethernet, SDXC Slot (UHS-II), Wi-Fi 6E, Bluetooth 5.3, Supports Up to 8 Displays, 370W Max Power, 3.6kg, Silver
Usage: Professional Video Editing & Transcoding (up to 22 streams of 8K ProRes), 3D Rendering & Modeling, Software Development, Machine Learning & AI Workloads, Music Production, Photography & Graphic Design, Data Science, Virtualization, and High-Performance Computing Workstations
