True Online Double-Conversion Topology: Provides the highest level of power protection by continuously converting AC to DC and back to AC. This isolates connected equipment from all power disturbances including brownouts, line noise, voltage transients, and outages.
10kVA/10kW Power Capacity: Delivers full rated power at unity power factor (1.0), meaning 10,000 VA equals 10,000 W of usable real power. This is ideal for powering critical IT loads, small data centers, and network equipment.

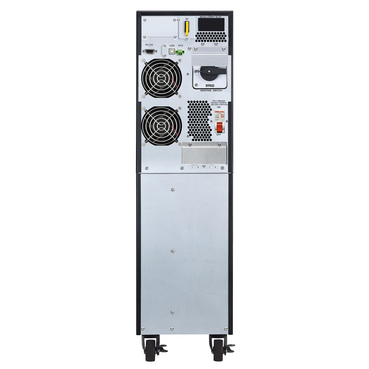

Hard Wire 3-Wire Output: Features a hardwired 3-wire (1P + N + E) output connection, providing a secure and permanent electrical installation rather than standard plug outlets.
Intelligent Card Slot: Includes a slot for an optional network management card, enabling remote monitoring and control of the UPS over a network via SNMP. USB and serial ports are also available for local management.
LCD Interface: A multifunction LCD status and control console provides detailed, accurate information about UPS status, including load levels, battery charge, and event logs, with local configuration capability.
ECO Mode for Efficiency: Operates at high efficiency in energy-saving ECO mode, reducing power consumption and heat generation during normal operation when input power is stable.
Generator Compatible: Designed to work seamlessly with generators, ensuring clean, uninterrupted power to loads during extended outages.
Intelligent Battery Management: Uses temperature-compensated charging to maximize battery performance, life, and reliability.
