AP673 AX13000 1024 users A high-performance Wi-Fi 7 ceiling-mount AP

Wi-Fi 7 Performance

• Total Rate up to 13.66 Gbps: Delivers 0.69 Gbps on 2.4 GHz, 1.44 Gbps on 5 GHz, and 11.53 Gbps on 6 GHz for extreme throughput .
• Tri-Band with 8 Spatial Streams: Operates 2x2 MIMO on 2.4 GHz, 2x2 MIMO on 5 GHz, and 4x4 MIMO on 6 GHz simultaneously .
• Wi-Fi 7 Technologies: Supports 320 MHz channel bandwidth on 6 GHz, 4096-QAM modulation for 20% higher spectral efficiency, and MLO (Multi-Link Operation) for concurrent multi-band transmission with reduced latency .

Smart Antenna Coverage

• Built-in Smart Antennas: Dual-band smart antenna array with intelligent switchover algorithm detects the application environment and access density, achieving precise Wi-Fi coverage and interference suppression .
• 40 m Optimal Coverage Range: Designed to provide reliable signals in large offices and high-density areas .

High-Density Capacity

• 1024 Max Access Users: Supports up to 1,024 concurrent connections, with 300 users recommended for optimal performance .
• Ideal for Large Offices: Suited for small and midsize enterprise offices, hospitals, shopping malls, and supermarkets .

Connectivity and Power

• 5GE Uplink Port: One 100M/GE/2.5GE/5GE electrical port for high-capacity wired backhaul .
• Secondary Gigabit Port: One 10M/100M/GE electrical port for auxiliary wired connectivity .
• USB Port: Integrated for IoT expansion and peripheral integration .
• PoE 802.3at/af Support: Powered via Ethernet cable, simplifying installation where power outlets are unavailable .
• Bluetooth 5.2: Enables BLE-based management and location services .

Security and Management

• Advanced Security: Supports WPA3-SAE, WPA2-PSK, SSH-2, ACL, and DHCP snooping for enterprise-grade protection .
• Multiple Management Options: Local management via EasyWeb or WAC controller; remote management via Huawei eKit App and SNC cloud platform .

Physical Design

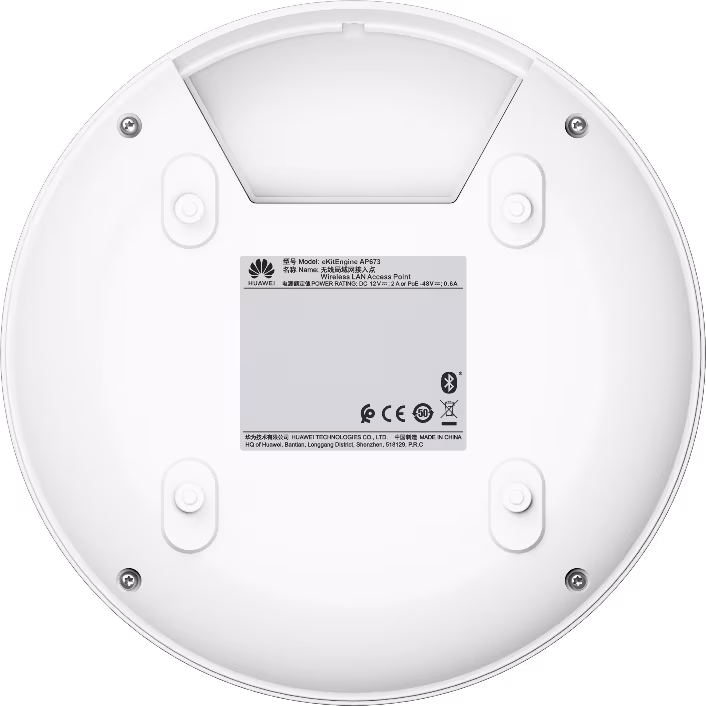

• Compact Round Form Factor: 220 mm diameter x 45 mm depth, designed for ceiling, wall, or pole mounting .
• Weight: 0.745 kg without packaging .
