KSh 6,430(KSh 7,459 Incl VAT)

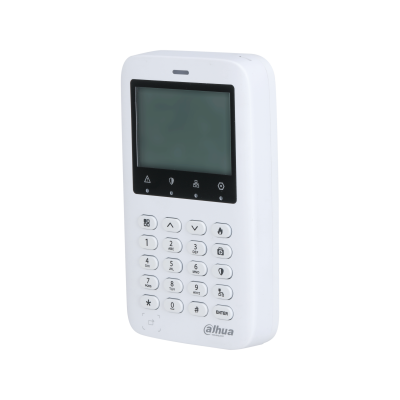

Device Type: Wired Alarm Keypad (for Dahua ARC-series control panels)
Model / SKU: DHI-ARK50C-R
Display: 128 × 64 LCD, size 56.27 mm × 38.35 mm (2.22" × 1.51")
Indicators: 5 intuitive LEDs — zone status, fault, arming/disarming, network, and communication
Keypad Buttons: 0–9, Menu, Up, Down, *, #, Fire, Medical, Arm, Bypass, Enter
Communication Interface: 1× RS-485 port for wired connection to the control panel
Wireless / Card Reader: RFIC frequency 13.56 MHz (IC card); carrier frequency 433.1 MHz; transmit power limit 10 mW; communication distance up to 80 m (262.47 ft); AES128 encryption
Arming/Disarming Methods: Local keypad; IC card (supports up to 32 cards)
Functions & Features: Built-in buzzer; housing tamper detection; power-failure protection for configured parameters; remote firmware update; search functions for zone status, system faults, program version, and communication parameters; supports controller programming, alarm cancelling, bypassing/unbypassing, relay operations, and walk test
Power Supply: 12 V DC (low power consumption)
Housing Material: PC + ABS (durable plastic)
Installation: Compact, wall-mountable design
Key Specs: Dahua DHI-ARK50C-R wired alarm keypad, 128×64 LCD, 5 status LEDs, RS-485 to control panel, 13.56 MHz IC card reader (up to 32 cards), 433 MHz wireless RF, AES128 encryption, up to 80 m range, 12 VDC, built-in buzzer, housing tamper, remote firmware update, PC+ABS housing
Usage: Local system control, monitoring, and programming for Dahua ARC-series alarm panels; suitable for residential and commercial security installations (shops, offices, guard stations, reception desks) where staff need to arm/disarm zones, view system status, and manage user access via IC cards
