Device Type: 6U Wall-Mounted Network / Server Cabinet (19-inch Standard)
Part Number/SKU: NWR-6U-6045-BL-GL
Brand: D-Link (NWR Series)
Colour: Black (BL)
Rack Capacity: 6U
Standard: Conforms to DIN 41494 or Equivalent ISO Standards
Dimensions (W × D): 600 mm × 450 mm

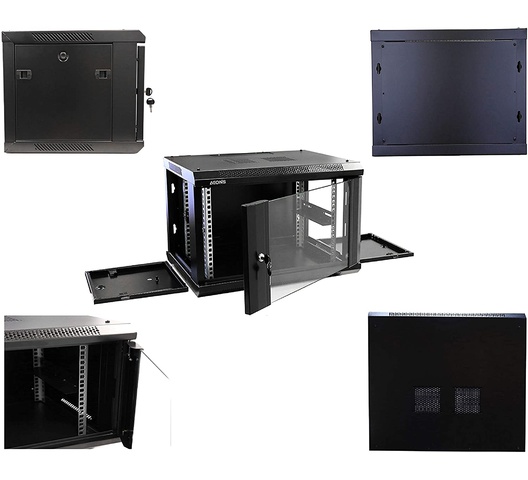

Front Door: Lockable Toughened Glass Door (GL Suffix) — provides visibility of installed equipment while maintaining security
Rear Panel: Sealed steel panel with wall-mounting provisions
Side Panels: Removable for installation and maintenance access
Material & Construction:- Fabricated from CRCA Steel, CNC Programmed, Punched, Bended, Welded, and Powder Coated
- Basic Frame: Steel
- Standard Finish: Powder Coated
Load Capacity (Static): Up to 40 kg
Mounting:- Equipment Mounting: 19-inch Mounting Angles Made of Formed Steel
- Wall Mount: Designed for wall-mounting with adjustable rack mount posts for flexible equipment installation
- Construction: Welded Frame for rigidity and long life
Ventilation: Vented Top and Bottom Covers with Fan Mounting Provision; Field Cable Entry/Exit Cut-Outs on Top and Bottom Panels
Cable Management: Cable Entry/Exit Cut-Outs on Top, Bottom, and Rear Panels
Included Accessories (Supplier Dependent): Some regional bundles include 1 × Fan and 1 × Shelf
Key Specs: D-Link NWR-6U-6045-BL-GL, 6U Wall-Mounted Rack Cabinet, 600×450mm, Conforms to DIN 41494, Lockable Toughened Glass Front Door, CRCA Steel Construction, Powder Coated Finish, Up to 40kg Static Load, 19-inch Mounting Angles, Welded Frame, Vented Top & Bottom Covers, Fan Mounting Provision, Cable Entry Cut-Outs (Top/Bottom/Rear), Removable Side Panels, Black
Usage: Housing Network Switches, Patch Panels, Routers, and Small Telecom Equipment in Small Networking, Domestic Applications, Audio/Video, Telecom, and Lab Environments. The compact 600×450mm footprint is ideal for space-constrained wall-mount installations where a floor-standing rack is not feasible.
