KSh 11,500(KSh 13,340 Incl VAT)
Device Type: Photoelectric Smoke Alarm with Integrated 5MP IR AI-Fire Network Camera
Smoke Detection: Photoelectric sensor with a coverage area of 30 m² – 60 m²; split-spectrum smoke chamber and intelligent algorithm to reduce false alarms
Alarm Output: Built-in high-decibel buzzer, ≥85 dB(A) at 3 m; supports smoke, fault, and low-battery alarm classifications
AI & Video Analytics: Flame detection, remote verification via smoke sensing and video alarm linkage, and out-of-service/call/service negligence detection
Image Sensor: 1/2.7" 5MP CMOS; max resolution 2592 × 1944 (5MP) or 2688 × 1520 (3K)
Video Output: Main stream up to 2592×1944 @ 1–20 fps or 2688×1520 @ 1–25/30 fps; H.265/H.264/H.264H/H.264B with Smart H.265+/H.264+
Lens & Field of View: Fixed-focal 2.0 mm lens, F2.0 aperture; 144° (H) × 92° (V) × 179.6° (D)
IR Illumination: 2× IR LEDs, up to 20 m (65.62 ft) distance; 0 lux with IR on
Data Ports: 1× RJ45 10/100/1000 Base-T Ethernet; 1× RS485 port; MicroSD card slot up to 256 GB
Audio: Built-in microphone and speaker; 1× audio input / 1× audio output; supports two-way audio and 7 built-in alarm voices (customizable)
Alarm I/O: 2× alarm inputs / 2× alarm outputs
Power Supply: 12V DC or PoE (802.3af); smoke sensing module powered by a 3V lithium battery with >3 years backup life
Power Consumption: ≤4.9 W (12V DC) / ≤4.8 W (PoE)

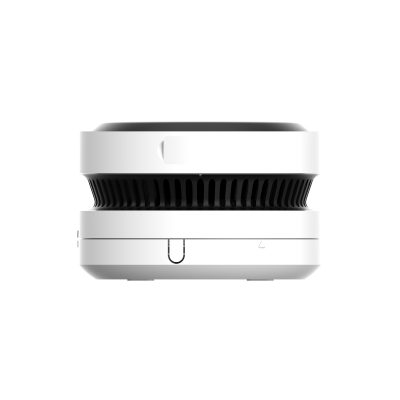

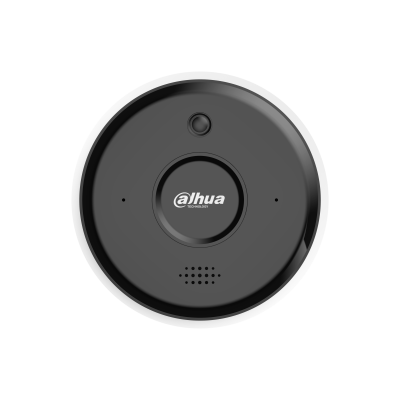

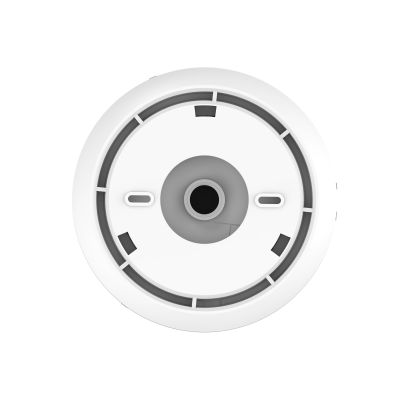

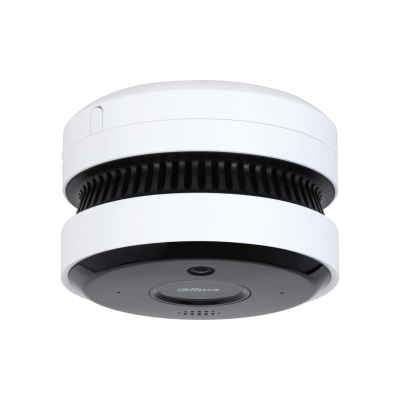

Physical & Environmental: Circular plastic housing; Ø120 × 79 mm (H); weight 426 g; operating temperature –10°C to +55°C; ceiling mount
Key Specs: Dahua DHI-HY-SAV849HAP-E, 5MP AI-fire smoke sensing camera, photoelectric smoke sensor (30–60 m²), flame detection, 2592×1944 resolution, 2.0mm fixed lens (144° H), IR up to 20m, H.265+, 2-in/2-out alarm I/O, built-in mic/speaker, MicroSD up to 256GB, 12V DC/PoE, 3V lithium backup battery (>3 years), 85dB(A) alarm at 3m, Ø120×79mm ceiling-mount housing, 426g
Usage: Dual-purpose fire and security monitoring for indoor commercial and industrial spaces such as warehouses, server rooms, libraries, archives, shops, and utility areas. The integrated camera enables remote visual verification of smoke alarms before dispatching emergency services, reducing false alarm disruptions while providing continuous video surveillance and AI-based flame detection
