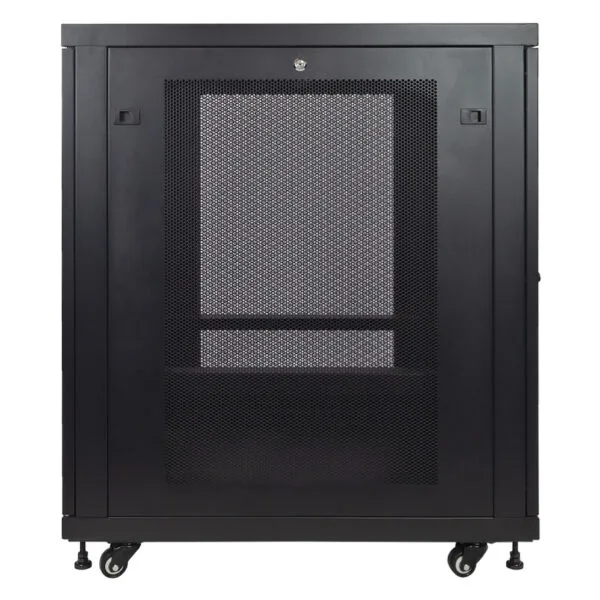

Device Type: 18U Floor-Standing Server Cabinet / Network Rack (19-inch Standard)
Part Number/SKU: NC-S80-18U (also referenced under OPC18U800X1000)
Brand: OfficePoint
Rack Capacity: 18U
Standard: 19-inch EIA Compatible
Dimensions (W × D): 800 mm × 1000 mm (Width × Depth)
Height: Approx. 902 mm (18U mounting height)
Material & Construction:- High-Quality Cold Rolled Steel (SPCC)
- Sturdy Welded Frame Structure
- Electrostatic Powder Coating Finish
Front Door: Reinforced, Heat-Treated, Tempered Glass Door with Security Lock
Side Panels: Removable Side Panels with Security Locks
Rear Door: Lockable Steel Rear Door (Full or Split)
Load Capacity: Approx. 800 kg (Static) — typical for 800×1000mm floor-standing cabinets of this class
Protection Rating: IP20 (Standard for Indoor Use)
Ventilation: Passive Ventilation via Top and Bottom Panels; Provisions for Optional Fan Tray Installation
Cable Management: Knock-out Blanking Plates for Cable Entry on Top, Bottom, and Rear Plates
Mounting: Floor-Standing Design (Leveling Feet Included); Optional Casters Available
Included Accessories (Typical for this Class):- 2× Fixed Shelves / Trays for Equipment Support
- 1× Fan Tray for Active Cooling
- 1× 9-Way PDU (Power Distribution Unit) for Organized Power Distribution
Assembly: Some listings indicate flat-packed shipment requiring assembly; confirm with supplier whether pre-assembled or flat-pack
Key Specs: OfficePoint NC-S80-18U, 18U Floor-Standing Server Cabinet, 800×1000mm (W×D), 19-inch EIA Compatible, Cold Rolled Steel Construction, Tempered Glass Lockable Front Door, Removable Lockable Side Panels, ~800kg Static Load, IP20 Rating, Passive Ventilation (Fan-Ready), Floor-Standing with Leveling Feet, Includes 2× Trays + Fan Tray + 9-Way PDU
Usage: Housing Servers, Network Switches, Patch Panels, Routers, and Telecom Equipment in Small to Medium Data Centers, Enterprise Server Rooms, Telecom Rooms, and Medium-Scale IT Setups
