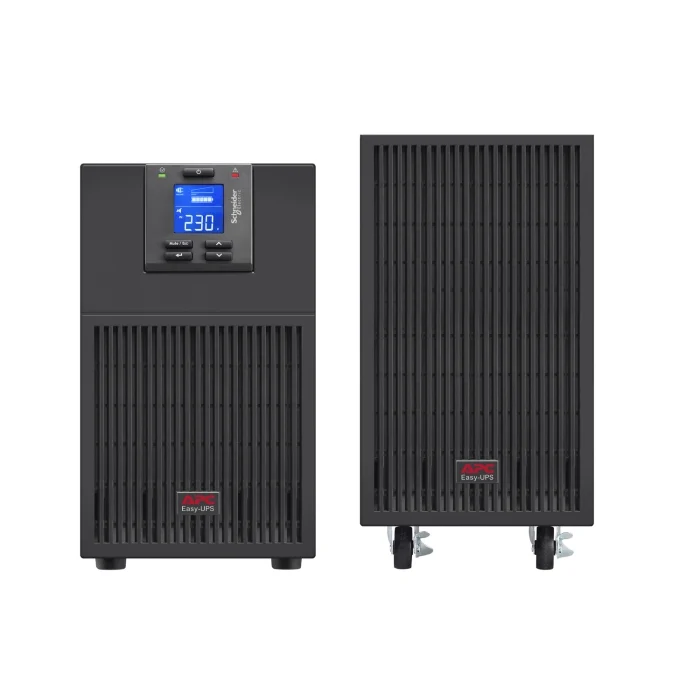

Device Type: 10kVA Smart Online Double-Conversion UPS
Capacity: 10000VA / 10000W (Unity Power Factor)
Topology: True Online Double Conversion with DSP Control
Efficiency: Up to 98% (ECO Mode)
Power Quality:- Output Power Factor: 1.0 (Unity)
- Input Power Factor: 0.99 (With PFC)
- Input Current Harmonic Distortion: ≤ 3%
- Transfer Time: 0 ms (AC ↔ Battery, Inverter ↔ Bypass)
Input:- Voltage Range: 110 – 300 Vac
- Frequency Range: 40 – 70 Hz
- Connection: Terminal (L+N+G)
Output:- Selectable Voltage: 200, 208, 220, 230, 240 Vac
- Waveform: Pure Sine Wave
Battery:- Type: 16 × 7Ah Sealed Lead-Acid (192V)
- Charging Current: 15A Max

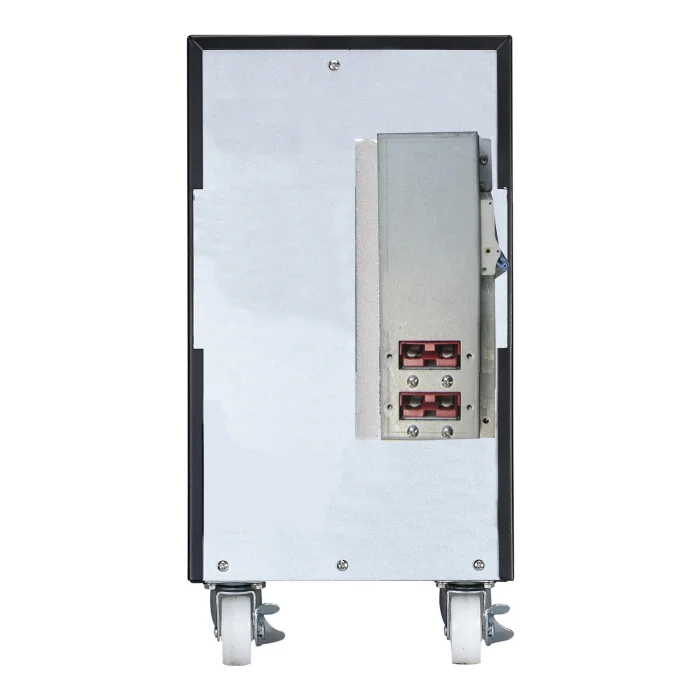

- External Battery Connector: Yes
- Intelligent Charging Management: Yes
Protection & Safety:- 5kA Lightning Protection Design
- Surge, Overload, Short-Circuit, Over-Temperature Protection
- Emergency Power Off (EPO)
- Maintenance Bypass Dry Contact
Communication & Monitoring:- Built-in Wi-Fi with Mobile App Support

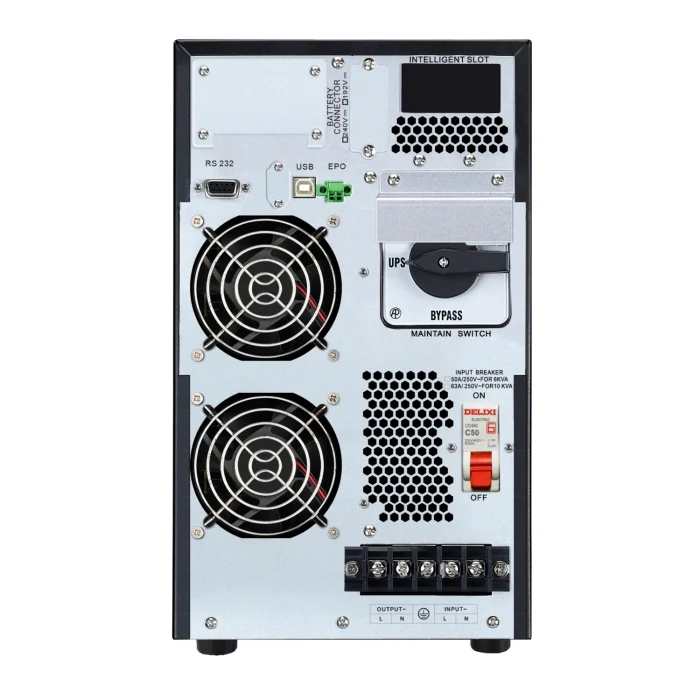

- Standard Ports: USB, RS232, RS485, Parallel Port
- Intelligent Card Slot
- Optional: SNMP Card, Relay Card, Battery Temperature Sensor
Display: 3.5" Color Touchscreen LCD
Form Factor: 4U Rack Mount (Tower Conversion Stands Included)
Warranty: 2 Years UPS / 1 Year Battery
Key Specs: EVI 10kVA Smart Online UPS, 10000VA/10000W, Unity PF, 0ms Transfer, Wi-Fi + Mobile App, 5kA Lightning Protection, 3.5" Touchscreen, 4U Rack/Tower, USB/RS232/RS485/Parallel, EPO
Usage: Data Centers, Server Rooms, Network Closets, Industrial & Medical Equipment, Critical IT Infrastructure, Generator-Backed Power Systems
